Unlocking Trigonometry Through Visualization

Our innovative **Trig Ruler** is designed to transform the way high school students learn and understand fundamental trigonometric concepts. This physical tool makes abstract sine, cosine, and tangent values tangible and easily digestible, moving beyond rote memorization to true comprehension.
The ruler consists of three precisely engineered scales:
- **Hypotenuse Scale:** The primary scale, 1 unit (divided into 100 smaller units) long.
- **Base Scale:** Pivoted at one end of the Hypotenuse scale, also 1 unit long.
- **Perpendicular Scale:** Pivoted at the other end of the Hypotenuse scale, also 1 unit long, designed to form a right angle with the Base scale.
Crucially, the Hypotenuse scale also features an attached **circular disc measuring 0° to 360°**, allowing for precise angle selection.
How it Works:

Students manipulate the ruler to form a **right-angle triangle**. By setting the Hypotenuse to any desired angle between 0° and 90° (using the circular disc), and ensuring the Base and Perpendicular scales form a perfect 90° angle at their intersection, the magic happens:
- The **cosine value** for the chosen angle is read directly from the **Base scale** at the point where it intersects with the Perpendicular scale.
- The **sine value** for the chosen angle is read directly from the **Perpendicular scale** at the same intersection point.
- The **tangent value** can then be easily derived or, with advanced versions, directly read from an additional integrated scale.
Activities
Measure height from a distance

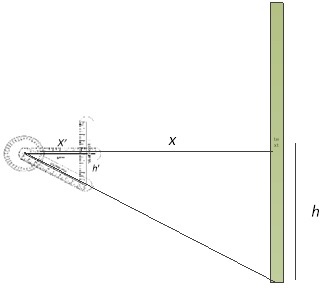

You can find out the distance of an object (such as a building or a tree) with the help of Trig Ruler without physically measuring the distance, using the property of similar Triangle. To find out how far an object is, stand at a distance and align Trig Ruler such that the base is horizontal and Hypotenuse is aligned at the ground where the object is (see Fig). You are essentially creating two similar triangles. By using proportionality property of similar triangles you can find the distance X of the object. Note: You are looking at the object from your height so the height AB is same as your height. This gives the distance x,
Benefits for Learning:
Visual Understanding
Students see how trigonometric ratios relate to the sides of a right triangle, building strong foundational intuition.
Hands-On Engagement
Active manipulation of the ruler enhances engagement and memory retention compared to static diagrams or calculators.
Conceptual Clarity
Demystifies sine, cosine, and tangent, making them less abstract and more concrete tools for problem-solving.
Supports Diverse Learners
Provides a tactile and visual learning pathway, catering to different learning styles.
"Make trigonometric concepts click with the Trig Ruler – where geometry meets real-world measurement!"
